DETECTOR PIR/SLIM-PIR-LUNA-PET SATEL

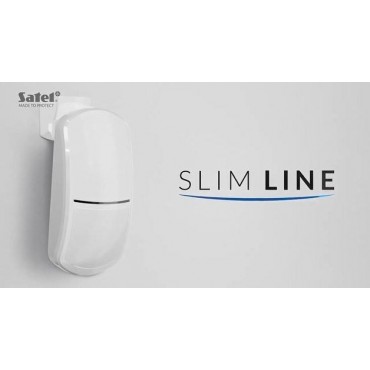

Description: Elegant, slim enclosure is made of high quality plastic.
Uniform appearance of all detectors installed in the premises makes it difficult for an intruder to identify the specific model used in the system because all of them look the same.
Models marked as LUNA come with additional built-in white LEDs. Consequently, these detectors can be used e.g. as motion responsive corridor lighting that can also work in the event of a power outage in the network. Lighting function can be controlled remotely or activated for a specified time when motion is detected.

compliance with EN 50131 Grade 2
configuring operating parameters: buttons and keyfob
end-of-line resistors - 1.1 kO
end-of-line resistors - 4.7 kO, 5.6 kO
plug-in terminal block
electronics board protecting cover
7 available LED indicator colors
built-in LED lighting
pet immunity function up to 20 Kg

Vendor Homepage: www.satel.pl/en/product/10156/SLIM-PIR-LUNA-PET,PIR-motion-detector-with-lighting-feature-and-pet-immunity-up-to-20-kg
Detector Type: Motion
Detection technology: PIR
Detecting area: 12 m x 13 m, 90°
Environment: Indoor
Operating temperature range: -10°C...+55°C
Power supply requirements: 12 V DC
Dimensions: 62 x 137 x 42mm
Shipping box quantity: 1
Shipping Box Depth: 14.7
Shipping Box Height: 5.5
Shipping Box Weight: 0.15
Shipping Box Width: 6.7
Unit Brutto Volume: 0.0005417
Unit Net Weight: 0.142
Unit Gross Weight: 0.15
Unit Box Width: 0.067
Unit Box Length: 0.147
Unit Box Height: 0.055
Category Code: MDE
