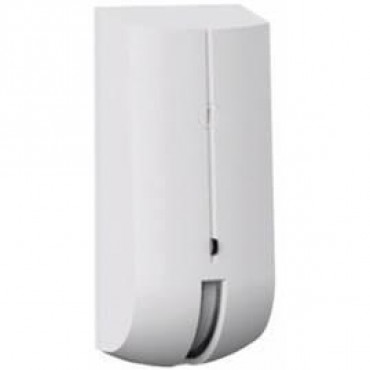

DETECTOR PIR+MW OUTDOOR WRL/AOCD-260 SATEL

Description: AOCD-260 is a curtain detector designed to work as part of the ABAX 2/ABAX two-way wireless system. In the ABAX 2 system, it is supported by the ACU-220 and ACU-280 controllers or the ARU-200 repeater, while in the ABAX system by the ACU-120, ACU-270 controllers, the INTEGRA 128-WRL control panel or the ARU-100 repeater. Owing to its efficient energy management, the detector can work up to 8 years without having to replace the battery. Importantly, the battery status is continuously monitored and, on detecting low voltage, the detector will sent appropriate information to the controller.
Vendor Homepage: https://www.satel.pl/en/produktid/948
Detector Type: Motion
Detection technology: PIR
Detecting area: 10 m x 0.6 m, angle 6°
Environment: Outdoor
Communication: Wireless
Operating temperature range: -40°C...+55°C
Dimensions: 44 x 105 x 40 mm
Shipping box quantity: 1
Shipping Box Depth: 13
Shipping Box Height: 5.5
Shipping Box Weight: 0.15
Shipping Box Width: 6.5
Unit Brutto Volume: 0.0004647
Unit Net Weight: 0.118
Unit Gross Weight: 0.15
Unit Box Width: 0.065
Unit Box Length: 0.13
Unit Box Height: 0.055
Category Code: MDE
